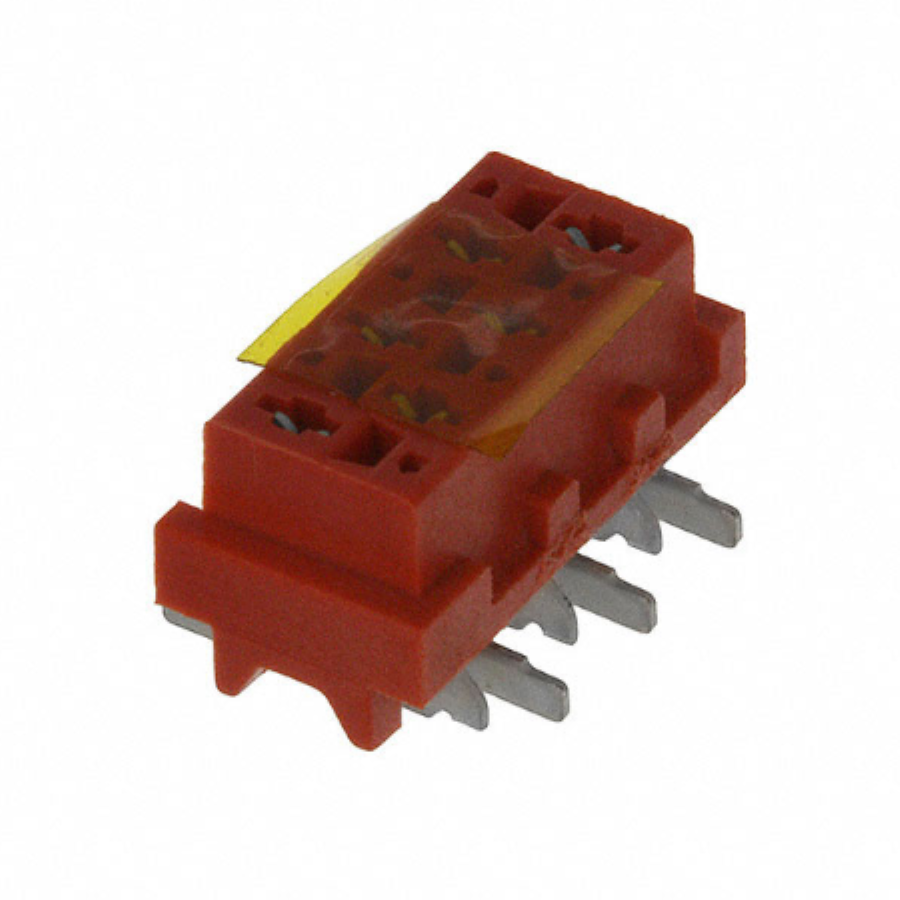

8-188275-0
Manufacturer:
TE Connectivity
Mfr.Part #:
8-188275-0
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:10 1.5 A 230 V
| Parameter | Value |
|---|---|
| Length | 14.7 mm |
| Termination | SMD/SMT, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 230 V |
| Number of Pins | 10 |
| Height | 5.334 mm |
| Packaging | Reel |
| Voltage Rating | 230 V |
| Depth | 7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | Connector, Receptacle |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 1.5 mm |
| Housing Material | Polyamide |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Contact Current Rating | 1 A |
| Housing Color | Red |
| PCB Mounting Orientation | Vertical |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | Without |
Stock: 5836
Distributors
pcbx
pcbxUnit Price$1.41406
Ext.Price$1.41406
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.41406 | $1.41406 |
| 10 | $1.21999 | $12.19990 |
| 25 | $1.16441 | $29.11025 |
| 50 | $1.09979 | $54.98950 |
| 100 | $1.03874 | $103.87400 |
| 300 | $0.99730 | $299.19000 |
| 500 | $0.95752 | $478.76000 |
| 1000 | $0.83710 | $837.10000 |
| 3000 | $0.73182 | $2195.46000 |
